EFL1603-HV-12
High Capacity Electric Counterbalanced Forklift 16T
- 16000kg
- 618.24V Li-Ion
- 7000mm
Explore the
EFL1603-HV-12
The EFL1603/1803HV Series brings together cutting-edge 618V Li-ion technology and rugged engineering to tackle high-intensity industrial operations. Available in 16-ton and 18-ton configurations, it combines a heavy-duty PMSM drive system, dual hydraulic motors, and advanced mast control for smooth and safe operation. Designed for reliability in demanding environments, it achieves travel speeds up to 28 km/h and ensures stable lifting performance at heights up to 7 meters. The EFL1603/1803HV Series is built for large-scale industries such as steel production, mining, ports, and construction material handling. With lifting heights of up to 7,000 mm and powerful traction performance, it enables efficient movement of heavy loads over long shifts. Thanks to its pneumatic tires, robust IC-style chassis, and hydraulic steering, it performs equally well on uneven outdoor terrain. Optional equipment-such as sideshift fork positioners, full cabins with AC, and telematics integration-makes it adaptable to a variety of specialized logistics applications.

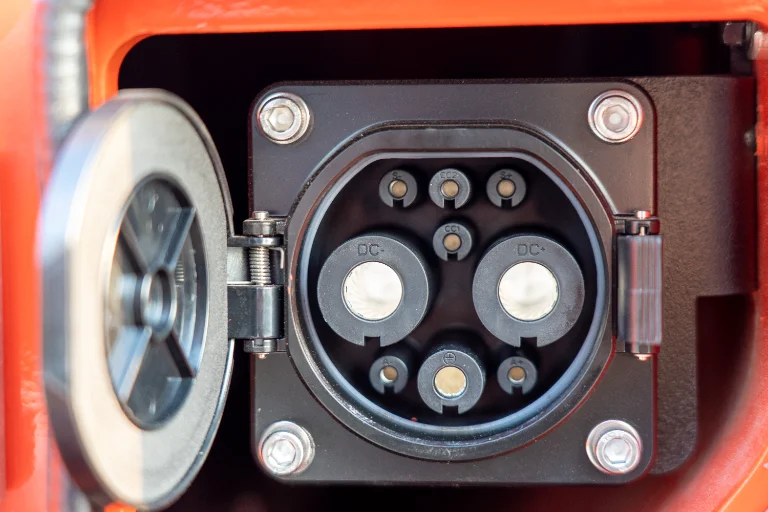

- energy efficient: extended runtime and fast charging
- safety assured: battery. Motor protection, monitoring and mast buffering
- sustainability: zero emissions for cleaner environment
- strong adaptability adaptable to harsh outdoor weather conditions
Application
The EFL1603/1803HV Series is built for large-scale industries such as steel production, mining, ports, and construction material handling. With lifting heights of up to 7,000 mm and powerful traction performance, it enables efficient movement of heavy loads over long shifts. Thanks to its pneumatic tires, robust IC-style chassis, and hydraulic steering, it performs equally well on uneven outdoor terrain. Optional equipment-such as sideshift fork positioners, full cabins with AC, and telematics integration-makes it adaptable to a variety of specialized logistics applications.
About the
EFL1603-HV-12
The EFL1603/1803HV Series redefines the standards of electric heavy-duty forklifts. Equipped with EP’s 618V/228Ah LFP Li-ion battery and dual 90 kW PMSM traction motors, it offers unmatched acceleration, responsiveness, and energy efficiency. Its hydraulic lift system, rated at 60 kW, ensures quick and controlled load handling, with lifting speeds of up to 0.45 m/s.
High-voltage technology minimizes current draw, reducing thermal stress and energy loss while improving overall system longevity. The integrated water- and oil-cooling systems for the motors, battery, and hydraulics maintain consistent temperature control during intense operations.

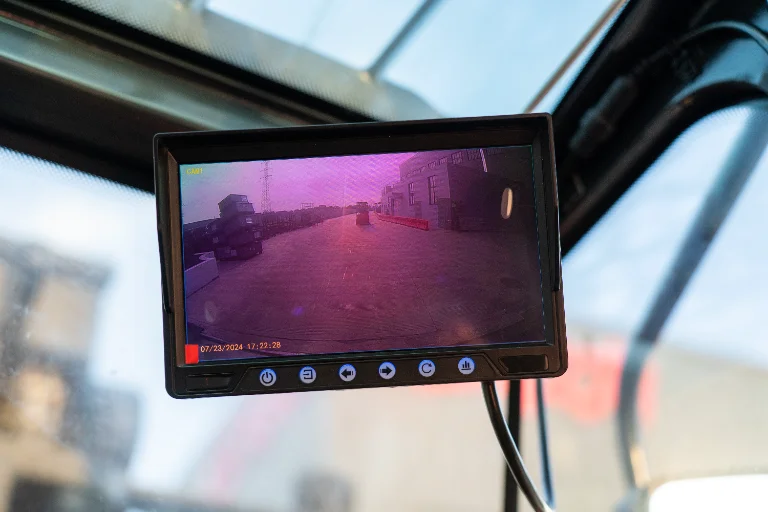

For operator comfort, the EFL1603/1803HV features an ergonomic cabin with suspension seat, OPS system, fingertip hydraulic controls, and full visibility. Optional all-weather cabins with air conditioning, LED lighting, and reversing cameras enhance safety and usability. Combining zero-emission technology with diesel-like strength, this series offers a powerful and sustainable solution for modern industrial fleets.
